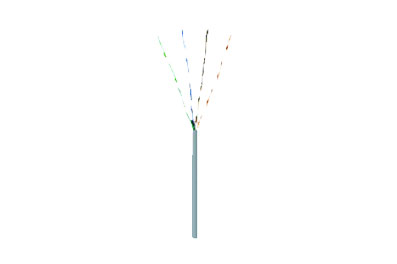

Description

Type: UTP - Cat 5e

Standard: TIA / EIA 568 A, ISO / IEC 11801

Conductor: 24 AWG (0.528mm) solid bare conductor

Insulation: Solid polyethylene, diameter 0.95mm

Pairs: 2 insulated conductors twisted together, Lay varied to minimize crosstalk

Sheath: Flame retardant PVC Grey RAL 7032, 5.86mm nominal diameter

Pair Colours: One Pair : blue & white / blue
Two Pairs : orange & white / orange
Three Pairs : green & white / green
Four Pairs : brown & white / brown

Application

Bending radius: 8 x O.D during installation

Temperature range during operation: +5°C up to + 50°C
